SD2000中英文電纜故障測試儀說明書  下載

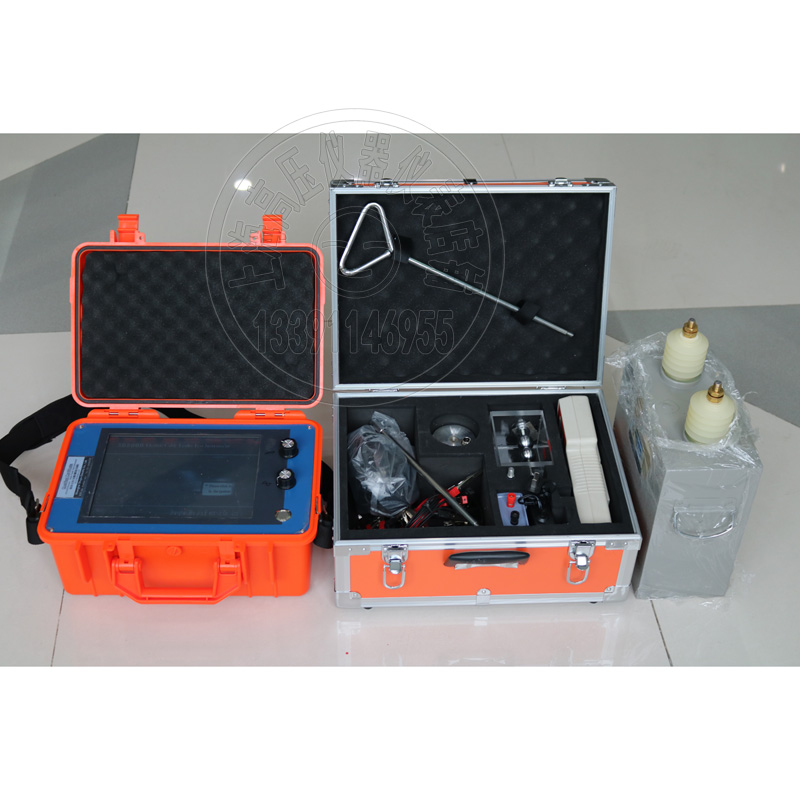

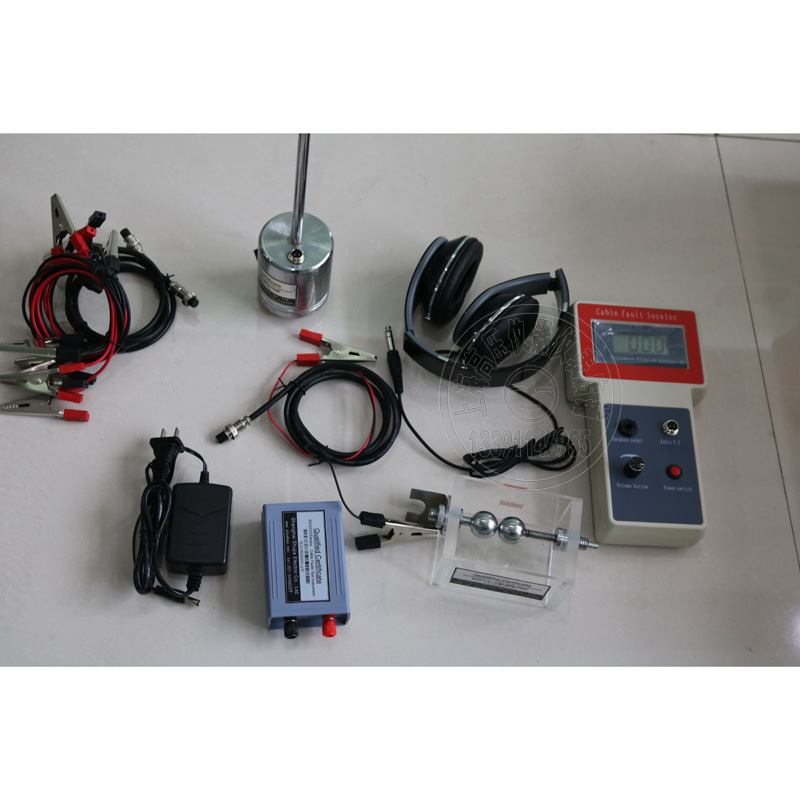

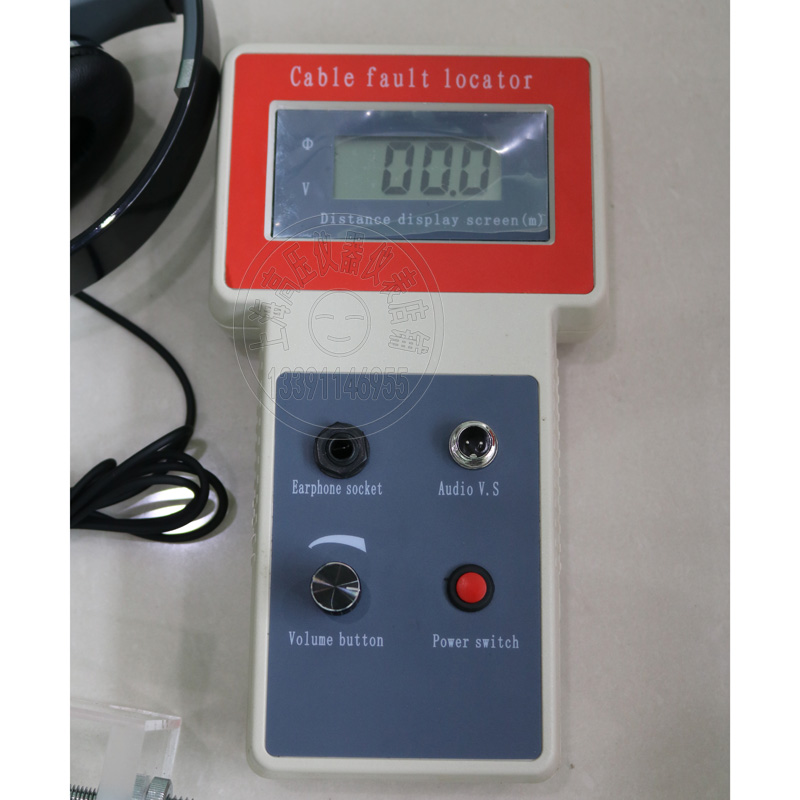

SD2000中英文電纜故障測試儀

儀器功能與特點：
1．可測35KV以下等級所有電纜的高、低阻故障，適應面廣。
2．采用國際最先進的“TDR”測試技術。具有擊高壓閃絡法和低壓脈沖法。
3．具有方便用戶的軟件和中文菜單。按鍵定義簡單明了。測量方法簡單快速。
4．檢測故障成功率、測試精度及測試方便程度優于國內任何一種檢測設備。

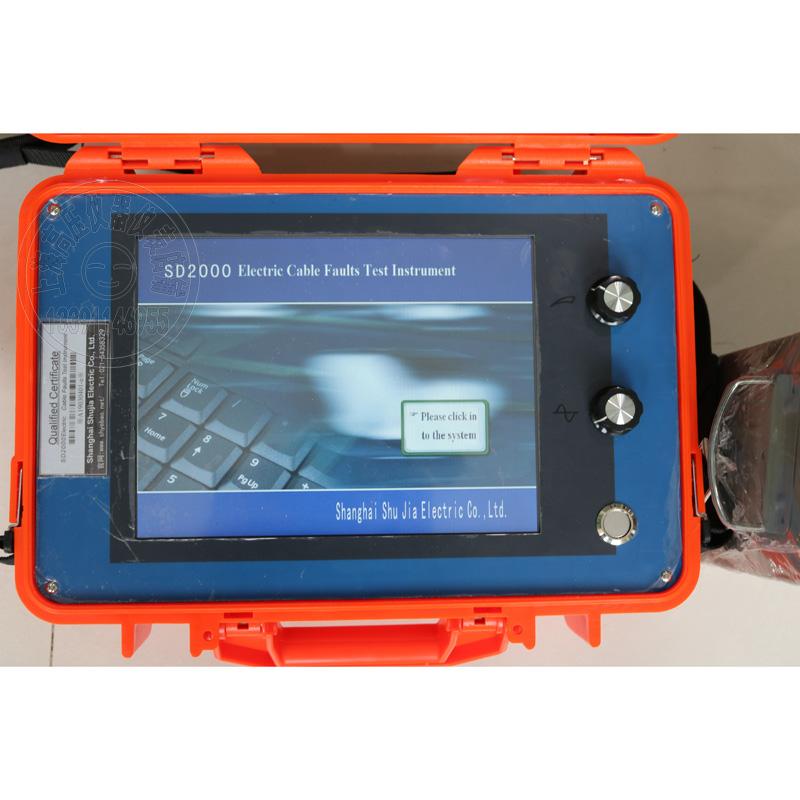

5．超大觸摸液晶屏作為顯示終端，儀器具有強大的數據處理能力和友好的顯示界面。
6．具有極安全的采樣高壓保護措施。測試儀器在沖擊高壓環境中不會死機和損壞。
7．內置電源，可在無電源環境測試電纜的開路及低阻短路故障。

PartⅡ Functions and features:
1. All measurable below 35 kv level high and low resistance fault of cable, adaptation of wide.
2. Adopt the international most advanced "TDR" testing technology. A high voltage flashover method and low voltage pulse method.
3. Has a user-friendly software and Chinese menu. The key to define simple and clear. The measuring method is simple and rapid.
4. Test failure rate, the test precision and how easy it is to test is better than that of any kind of testing equipment in China.
5. Large touch LCD screen as the display terminal, the instrument has powerful data processing ability and friendly display interface.
6. Has the extremely safe sampling high voltage protection. Impact test equipment in high pressure environment will not crash and damage.
7. The built-in power supply, can be in the absence of power supply environment test cable open circuit and low resistance fault.

主要性能指標：

1．測試方法：低壓脈沖、高壓閃絡、速度測量。
2．沖擊高壓：低于35KV電力電纜。
3．?dāng)?shù)據采樣速率：80MHz、40 MHz、20MHz、10 MHz。
4．測試距離：＞30Km。
5．讀數分辨率：1m。
6．系統測試精度：小于50cm。
7．測試電纜脈寬設有：“0.05”、“0.1”、“0.2”、“0.5”、“1”、“2”、“8”微秒。
8．具有測試波形儲存功能：能將現場測試到的波形按規定順序方便地儲存于儀器內，供隨時調用觀察?？梢詢Υ娲罅康默F(xiàn)場測試波形。
8．可自動判斷故障距離。
10．內置電源：充滿電后儀器可連續工作3小時以上，亦可外接交流電源工作。
11．工作條件：溫度-10℃～+45℃，相對濕度 90%。
PartⅢ  Main technical criteria
1. Test method: low voltage pulse, high voltage flashover, velocity measurement.
2. The impact of high pressure: below 35 kv power cables.
3. The data sampling rate: 80 MHz, 40 MHz, 20 MHz, 10 MHz.
4. Test distance: > 30 km.
5. The readout resolution: 1 m.
6. System test precision: less than 50 cm.
7. Test cable pulse-width has: "0.05", "0.1", "0.2", "0.5", "1", "2", "8" microseconds.
8. Test waveform storage function: can to field test of waveform sequence easily stored in the instrument by the regulation, to call at any time to observe. Can store large amounts of field test waveform.
8. Can automatically judge fault distance.
10. The built-in power supply: full of electricity, the instrument can work continuously for more than three hours after work can be an external ac power.
11. The working conditions: temperature - 10 ℃ ~ + 45 ℃, relative humidity 90%.
